MNS

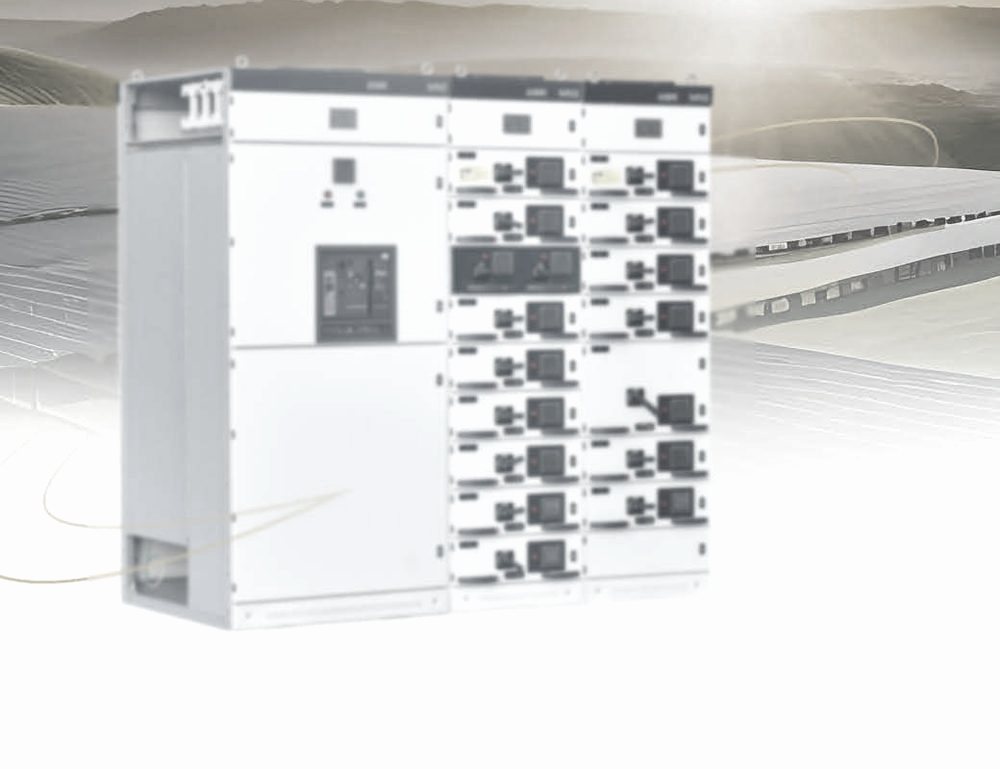

Main LV switchboard, withdrawable (MNS technology)

≤ 4000 A · Pollution 3 · Seismic 8

MNS is the ABB-technology withdrawable low-voltage switchgear. Its 25 mm-modulus C-section frame and library of more than 200 standard assembly parts let the same cabinet be configured as fixed partitions or drawer units for protection, operation, control, measurement and indication.

Request a quotation Certificates
MNS Main LV switchboard, withdrawable (MNS technology)

Tested and certified

CE (TÜV Rheinland); CCC type test

Built for

Power plants, Data centres, Petrochemical.

Standards

GB 7251.1, IEC 439-1, VDE 0660-500, BS 5486-1, UTE 63-410.

Technical data

ParameterValue
Type-tested range1600–4000 A (Chinese and English test reports)
Service conditions-5 to +40 °C, 24 h mean ≤ +35 °C; RH ≤ 50 % at 40 °C; ≤ 2000 m; pollution level 3; seismic 8
Transport / storage-25 to +55 °C, +70 °C short term
Construction25 mm modulus C-profile; flame-retardant engineering plastics; no special tools for assembly
CertificatesCE (TÜV Rheinland); CCC type test

Standards

  • GB 7251.1
  • IEC 439-1
  • VDE 0660-500
  • BS 5486-1
  • UTE 63-410

Applications

  • Power plants
  • Data centres
  • Petrochemical
  • Buildings

Production process

From enquiry to commissioning

  1. Enquiry and analysisSend a single-line diagram, load list or panel schedule. An engineer confirms voltage, short-circuit level, forms of separation and applicable standards within 24 hours.
  2. Proposal and drawingsBudgetary quotation in five working days, then general-arrangement drawings, busbar sizing and a bill of materials for approval.
  3. Order and engineeringApproved drawings release procurement of Schneider, ABB or specified components and sheet-metal programming.
  4. Fabrication and assemblyLaser cutting, CNC bending, powder coating, busbar processing, primary assembly and secondary wiring in Shaoshan.
  5. Factory acceptance testDielectric, loop-resistance, insulation, earth-continuity, IP and current-injection tests; customers and consultants welcome to witness.
  6. Delivery and after-salesExport packing, sea or air freight, commissioning support and a 7×24 service line with Schneider-trained engineers.

Also in low voltage switchboards

MCC Motor control centre, fixed and withdrawable

Motor control centre, fixed and withdrawable

Motor starter, soft-starter and drive sections on GCK, GCS or BlokSeT frames, with withdrawable drawers for maintenance without shutdown.
0.37–250 kWWithdrawable drawersIcw 50–80 kA
Product detail
GCK Motor control centre (MCC), withdrawable

Motor control centre (MCC), withdrawable

Power distribution centre and motor control centre in one line-up, 380 or 660 V, up to 3150 A, IP40.
380 / 660 V630–3150 AIcw 80 kA
Product detail
GCS Main LV switchboard, withdrawable

Main LV switchboard, withdrawable

Draw-out switchgear for automated plants that need computer interface; bus up to 4000 A, MCC 1000 A, type-tested to 6300 A.
380 / 660 V≤ 4000 AIcw 50 / 80 kA
Product detail
GGD Main LV switchboard, fixed

Main LV switchboard, fixed

Fixed-mounted low-voltage assembly up to 3150 A with 30, 50 or 70 kA breaking capacity; receiving, bus-tie, feeder, motor control, compen...
380 V≤ 3150 A30 / 50 / 70 kA
Product detail

Quote this product

Send the single-line diagram, short-circuit level and panel schedule; a budgetary quotation follows within five working days.

Request a quotation
