YB□-12/0.4

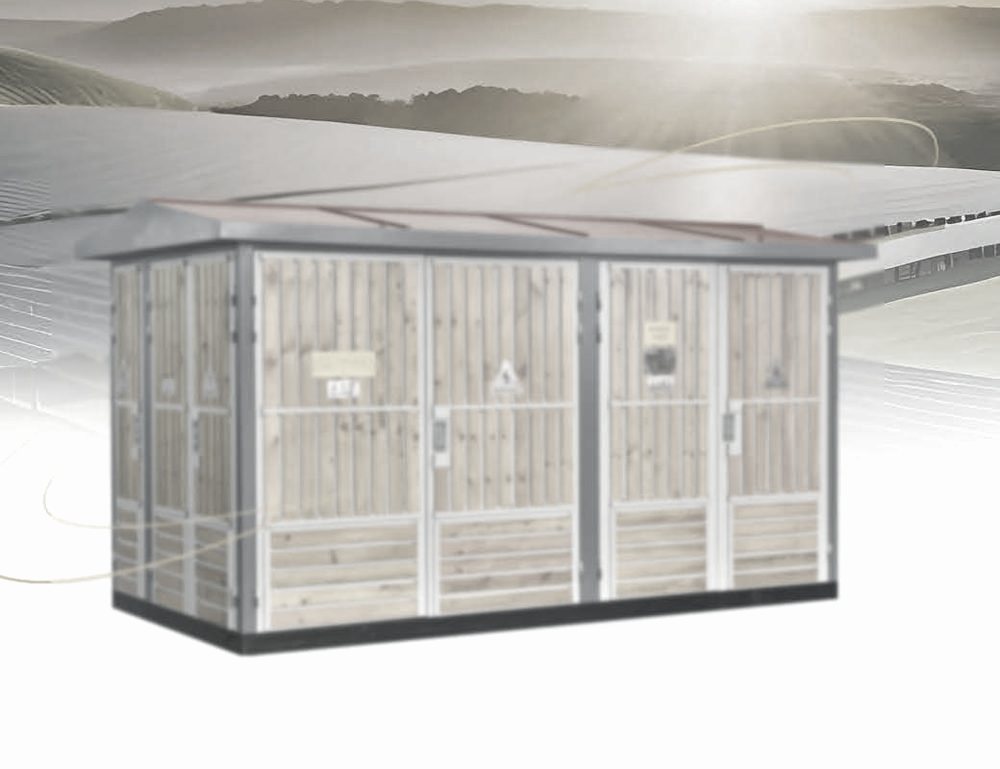

Prefabricated compact substation
12 / 0.4 kV · 800–1250 kVA · 0.69 kV / 3150 kVA
The YB prefab substation combines MV switchgear, distribution transformer, LV switchgear, metering and reactive compensation to a scheme, in a strong, ventilated double-layer composite shell. It suits grid renewal, residential estates, industrial sites, airports, rail, docks, temporary supply and renewable collector duty.
Tested and certified
CN type tests
Built for
Grid renewal, Residential and commercial estates, Solar and wind farms.
Standards
GB/T 17467, IEC 62271-202.
Technical data
| Parameter | Value |
|---|---|
| Rated voltage | 12 / 0.4 kV; 12 / 0.69 kV for wind and solar collector duty |
| Tested capacities | 800, 1000 and 1250 kVA; 3150 kVA at 0.69 kV |
| Shell | Honeycomb double-layer composite; stainless steel, aluminium alloy, cold-rolled or colour steel |
| Styles | Universal, villa and compact |
| Automation | Feeder terminal unit (FTU) in the RMU for short-circuit and earth-fault detection; four-remote |
| Service conditions | ≤ 2000 m; -25 to +40 °C; RH ≤ 95 % daily at 25 °C |
| Certificates | CN type tests |
Standards
- GB/T 17467
- IEC 62271-202
Applications
- Grid renewal
- Residential and commercial estates
- Solar and wind farms
- Temporary site power
Production process
From enquiry to commissioning
- Enquiry and analysisSend a single-line diagram, load list or panel schedule. An engineer confirms voltage, short-circuit level, forms of separation and applicable standards within 24 hours.
- Proposal and drawingsBudgetary quotation in five working days, then general-arrangement drawings, busbar sizing and a bill of materials for approval.
- Order and engineeringApproved drawings release procurement of Schneider, ABB or specified components and sheet-metal programming.
- Fabrication and assemblyLaser cutting, CNC bending, powder coating, busbar processing, primary assembly and secondary wiring in Shaoshan.
- Factory acceptance testDielectric, loop-resistance, insulation, earth-continuity, IP and current-injection tests; customers and consultants welcome to witness.
- Delivery and after-salesExport packing, sea or air freight, commissioning support and a 7×24 service line with Schneider-trained engineers.
