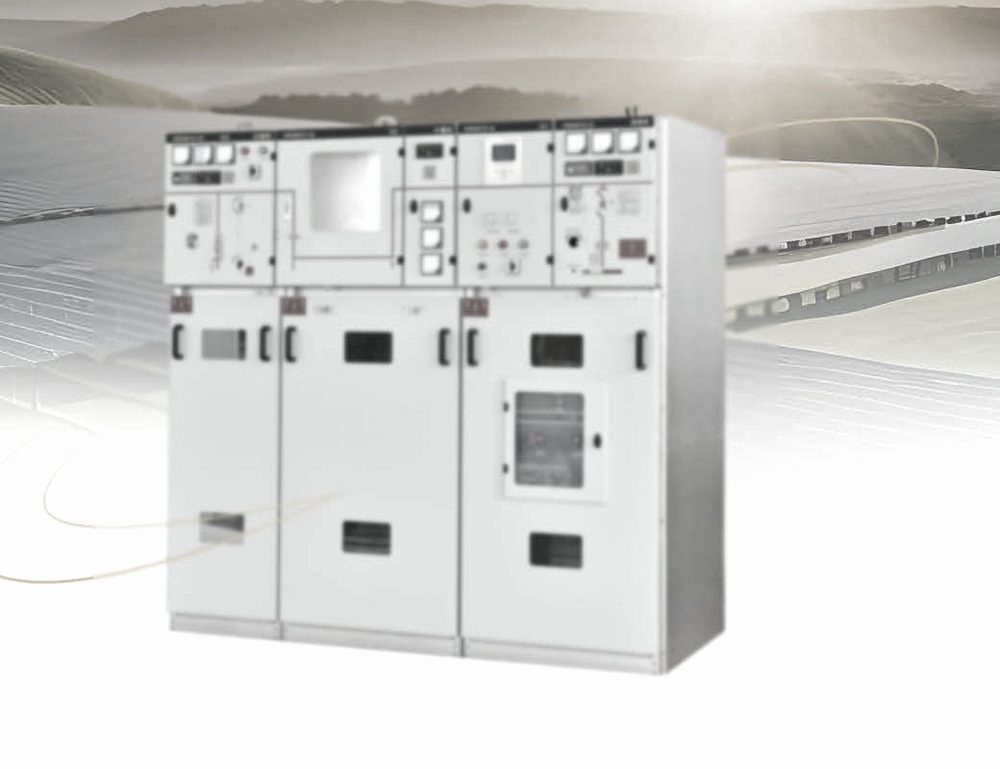

HXGN-12
Indoor SF6 ring main unit, 12 kV
12 kV · 630 A · 20 kA 3 s
HXGN-12 is a compact, metal-enclosed ring main unit with SF6 load-break switches and fuse-switch combinations for 12 kV ring and radial networks. Modular units cover ring, branch and transformer feeders, with transformer protection up to a 125 A fuse rating.

Tested and certified
CN type test (HXGN-12/630-25)
Built for
Urban distribution loops, Data centre MV rings, Industrial parks.
Standards
IEC 62271-200, GB 3906.
Technical data
| Parameter | Value |
|---|---|
| Rated voltage / frequency | 12 kV / 50 Hz |
| Power-frequency withstand, 1 min | 42 kV; 48 kV across isolating distance |
| Lightning impulse withstand | 75 kV; 85 kV across isolating distance |
| Busbar / max. fuse rating | 630 A / 125 A |
| Short-time / peak withstand | 20 kA 3 s / 50 kA |
| Operations | 100 full-load; 2000 mechanical |
| Enclosure | IP3X |
| Certificates | CN type test (HXGN-12/630-25) |
Standards
- IEC 62271-200
- GB 3906
Applications
- Urban distribution loops
- Data centre MV rings
- Industrial parks
- Renewable feeders
Production process
From enquiry to commissioning
- Enquiry and analysisSend a single-line diagram, load list or panel schedule. An engineer confirms voltage, short-circuit level, forms of separation and applicable standards within 24 hours.
- Proposal and drawingsBudgetary quotation in five working days, then general-arrangement drawings, busbar sizing and a bill of materials for approval.
- Order and engineeringApproved drawings release procurement of Schneider, ABB or specified components and sheet-metal programming.
- Fabrication and assemblyLaser cutting, CNC bending, powder coating, busbar processing, primary assembly and secondary wiring in Shaoshan.
- Factory acceptance testDielectric, loop-resistance, insulation, earth-continuity, IP and current-injection tests; customers and consultants welcome to witness.
- Delivery and after-salesExport packing, sea or air freight, commissioning support and a 7×24 service line with Schneider-trained engineers.
Also in medium voltage switchgear

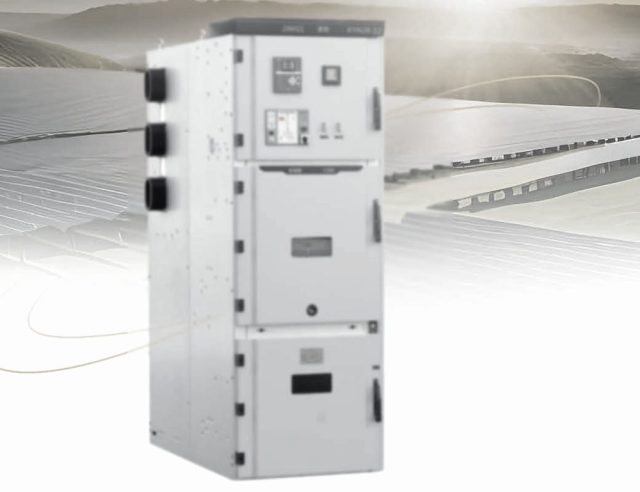

Armoured withdrawable MV switchgear, 12 kV
The standard 12 kV metal-clad switchgear for incoming, feeder and coupler duty. Type-tested at 1250 A / 31.5 kA.
3.6 / 7.2 / 12 kV630–1250 A16–31.5 kA
Product detail

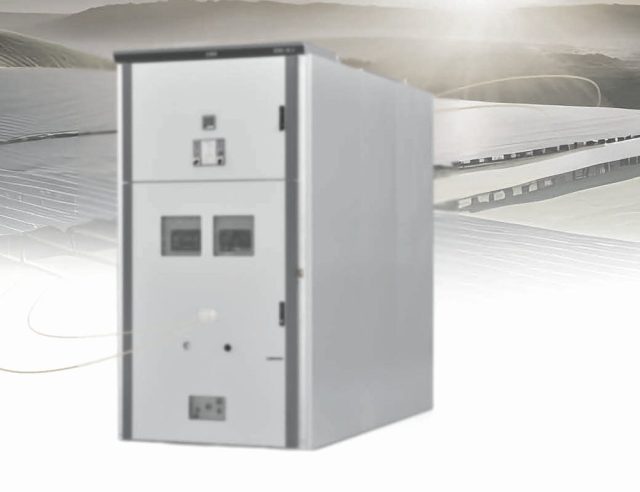

Armoured withdrawable MV switchgear, 40.5 kV
