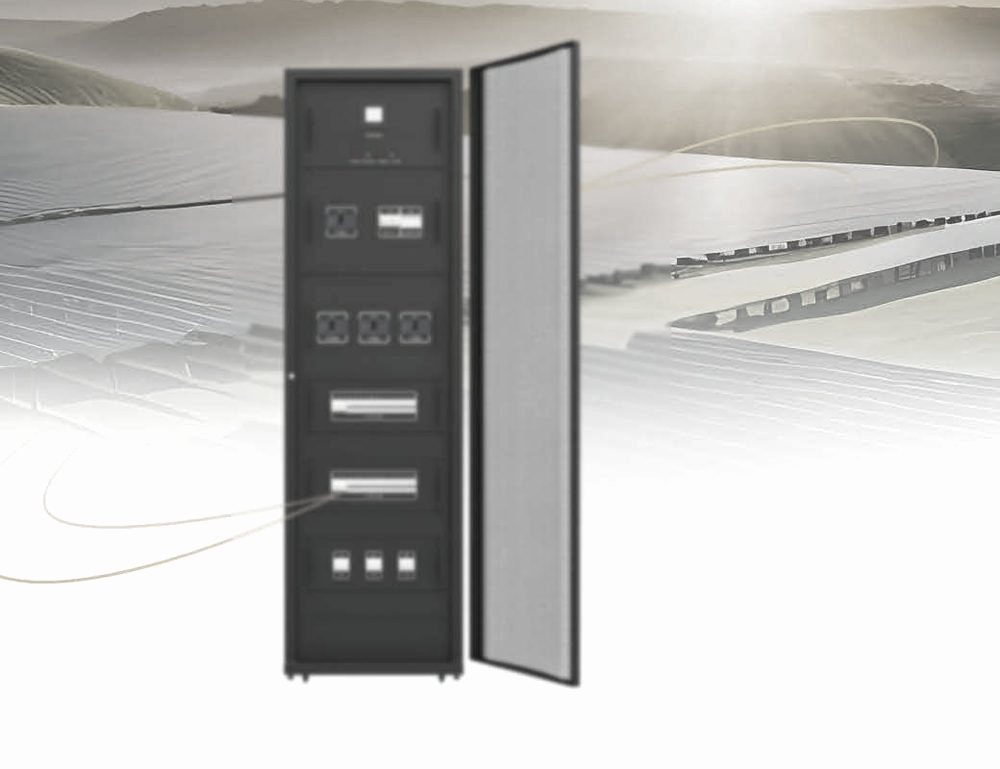

DPF01
Row power distribution cabinet (PDU)
20–200 kVA · RS485 / SNMP · IP20
DPF01 is Zhenxiang's power distribution cabinet for transmission and IT equipment. It serves IDC rooms in finance, telecom, power dispatch and government, giving per-branch measurement and alarms for the loads that matter.
Tested and certified
CCC, CE (TÜV Rheinland); CN type test
Built for
IDC row distribution, Telecom rooms, Finance and government data rooms.
Standards
GB 7251, IEC 61439.
Technical data
| Parameter | Value |
|---|---|
| Rated capacity | 20–200 kVA |
| Input | AC 50/60 Hz three-phase 400 V or single-phase 230 V; DC 24 / 48 / 240 V options; single or dual input |
| Input breaking capacity | ≥ 25 kA |
| Output | Single- or multi-pole MCB ≤ 63 A; output breaking ≥ 6 kA |
| Surge protection | Optional, Imax 20 kA 8/20 µs |
| Main-circuit measurement | Energy, load %, apparent / active / reactive power, PF, voltage, frequency, N–E voltage, harmonics |
| Branch measurement | Power, load %, PF, energy, frequency, harmonics, switch state, temperature, operation count |
| Alarms | Input over / under-voltage, loss of supply, overload, frequency, SPD action, branch current pre-alarm, switch temperature and life |
| Options | Isolation transformer, branch auxiliary contacts, cabinet temperature / humidity / smoke detection |
| Communication | RS485, RS232 Modbus, TCP/IP, SNMP |
| Enclosure | IP20; 600 (800, 1000) × 1100 × 2000 (2200, 2500) mm; 160–250 kg without isolation transformer |
| Environment | -5 to +40 °C, 0–90 % RH non-condensing, ≤ 2000 m |
| Certificates | CCC, CE (TÜV Rheinland); CN type test |
Standards
- GB 7251
- IEC 61439
Applications
- IDC row distribution
- Telecom rooms
- Finance and government data rooms
Production process
From enquiry to commissioning
- Enquiry and analysisSend a single-line diagram, load list or panel schedule. An engineer confirms voltage, short-circuit level, forms of separation and applicable standards within 24 hours.
- Proposal and drawingsBudgetary quotation in five working days, then general-arrangement drawings, busbar sizing and a bill of materials for approval.
- Order and engineeringApproved drawings release procurement of Schneider, ABB or specified components and sheet-metal programming.
- Fabrication and assemblyLaser cutting, CNC bending, powder coating, busbar processing, primary assembly and secondary wiring in Shaoshan.
- Factory acceptance testDielectric, loop-resistance, insulation, earth-continuity, IP and current-injection tests; customers and consultants welcome to witness.
- Delivery and after-salesExport packing, sea or air freight, commissioning support and a 7×24 service line with Schneider-trained engineers.
Also in distribution boards
CE

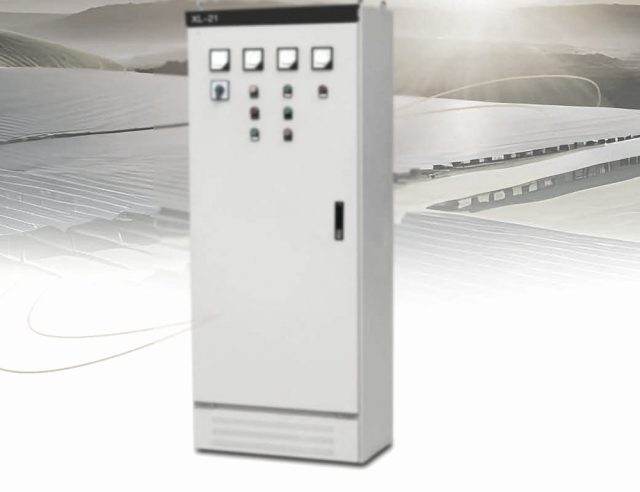

XL power distribution cabinet
Wall-standing power distribution and motor control cabinet for three-phase four-wire systems up to 500 V.
≤ 500 VNSX100–250RL1 fuses
Product detail
CE

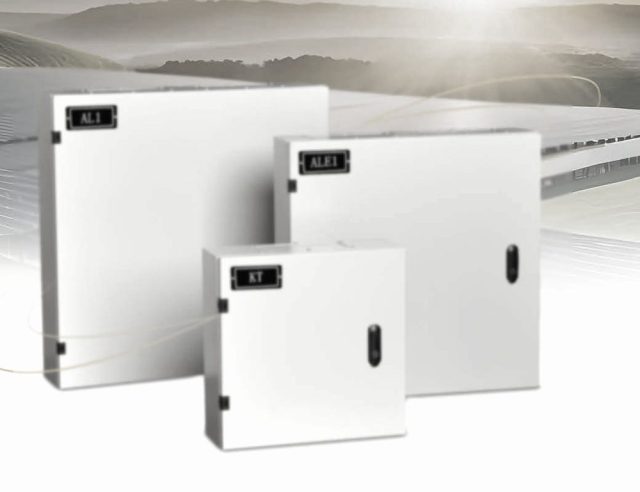

XM wall-mounted distribution box
Cold-rolled steel distribution, lighting and metering box up to 630 A and 80 kA, IP67 enclosure; surface, flush or outdoor mounting.
230 / 400 V630 AIP67
Product detail
JP · GFBMX · DFX · Metering box
Outdoor LV cabinets, PV grid boxes and cable branch boxes
Outdoor integrated distribution cabinet, PV grid-connection box, LV cable branch box and metering box, all CCC type-tested.
OutdoorPV grid tieCCC
Product detail
Representative Schneider Electric illustration
Schneider licence

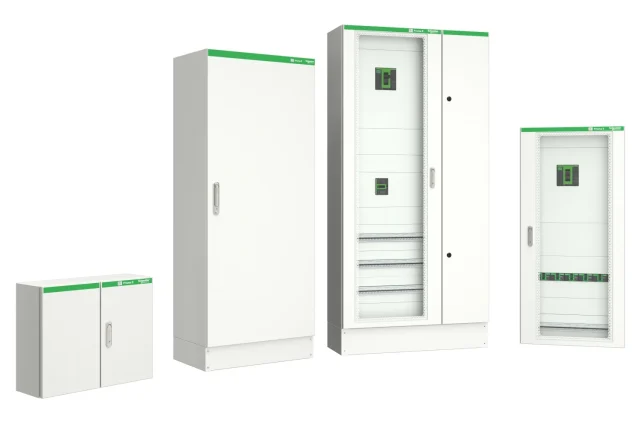

Schneider Prisma E distribution board
