Prisma E

Schneider Prisma E distribution board

100–3200 A · IEC 61439 · CE

Prisma E is a modular, multi-purpose low-voltage distribution board developed by Schneider Electric around standardised application concepts. Zhenxiang holds the Prisma E authorisation (March 2025 to March 2027), the Demonstration-level Partner certificate and CE certification on its build.

Request a quotation Certificates
Prisma E Schneider Prisma E distribution board

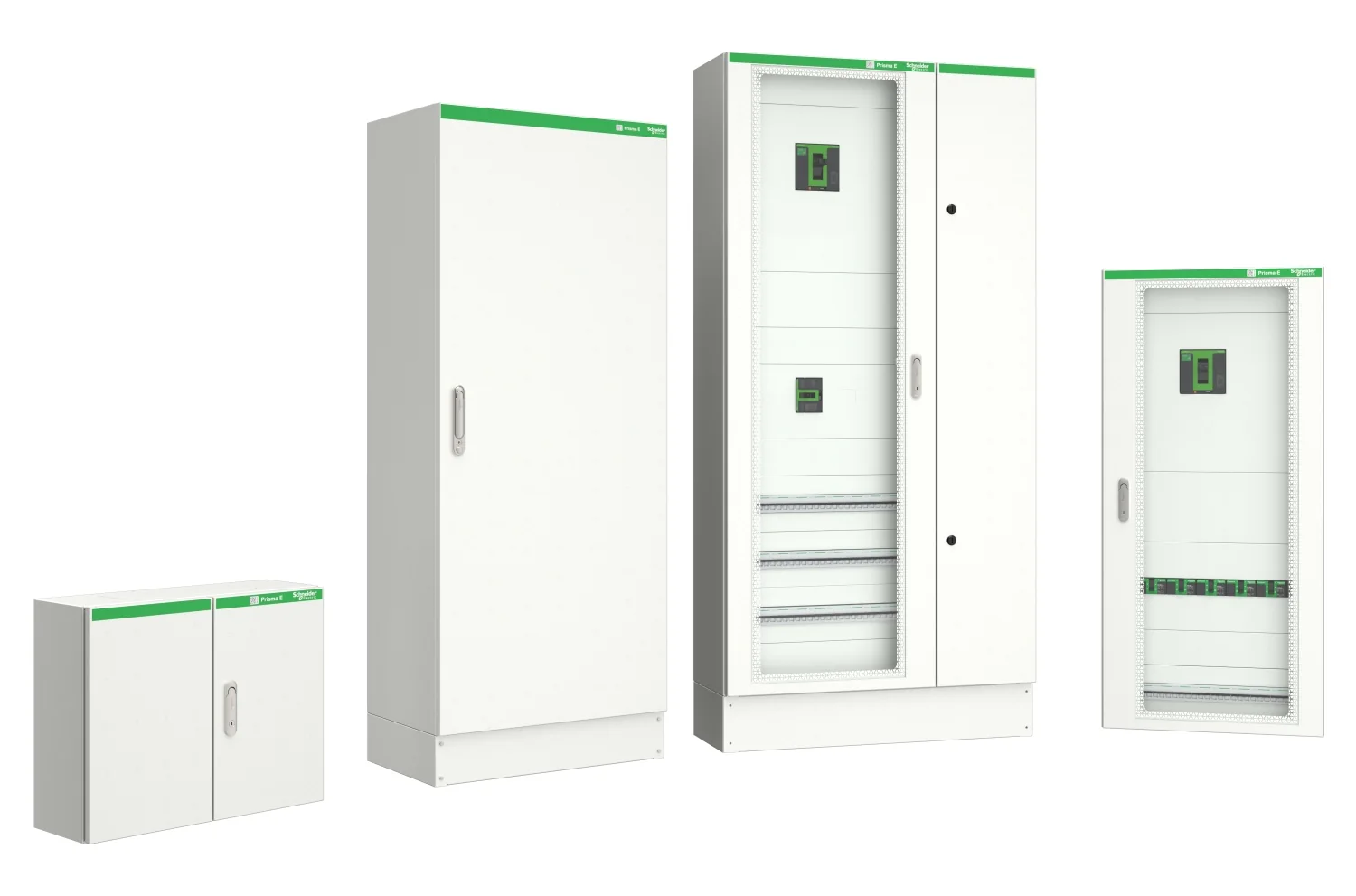

Official Schneider Electric product imagery, shown as representative illustrations. These are not photographs of equipment manufactured or delivered by Zhenxiang Electric.

Tested and certified

CE (TÜV Rheinland); CN type test

Built for

Building distribution, Data centre rooms, Light industry.

Standards

IEC 61439, GB/T 7251.

Technical data

ParameterValue
Incoming and main distribution100–3200 A
Sub-distribution100–1000 A
Frames9 to 25 modules (same depth and width, height varies); 29, 33, 36 modules with base
BusbarRear vertical bus, horizontal bus and connection bus; flexible wiring
FinishRAL 7035 electrostatic powder; solid, glass or open doors
Design validations11 Schneider design verifications incl. temperature rise, short-circuit, IP, creepage and clearance
CertificatesCE (TÜV Rheinland); CN type test

Standards

  • IEC 61439
  • GB/T 7251

Applications

  • Building distribution
  • Data centre rooms
  • Light industry

Production process

From enquiry to commissioning

  1. Enquiry and analysisSend a single-line diagram, load list or panel schedule. An engineer confirms voltage, short-circuit level, forms of separation and applicable standards within 24 hours.
  2. Proposal and drawingsBudgetary quotation in five working days, then general-arrangement drawings, busbar sizing and a bill of materials for approval.
  3. Order and engineeringApproved drawings release procurement of Schneider, ABB or specified components and sheet-metal programming.
  4. Fabrication and assemblyLaser cutting, CNC bending, powder coating, busbar processing, primary assembly and secondary wiring in Shaoshan.
  5. Factory acceptance testDielectric, loop-resistance, insulation, earth-continuity, IP and current-injection tests; customers and consultants welcome to witness.
  6. Delivery and after-salesExport packing, sea or air freight, commissioning support and a 7×24 service line with Schneider-trained engineers.

Also in distribution boards

XL XL power distribution cabinet
CE

XL power distribution cabinet

Wall-standing power distribution and motor control cabinet for three-phase four-wire systems up to 500 V.
≤ 500 VNSX100–250RL1 fuses
Product detail
XM XM wall-mounted distribution box
CE

XM wall-mounted distribution box

Cold-rolled steel distribution, lighting and metering box up to 630 A and 80 kA, IP67 enclosure; surface, flush or outdoor mounting.
230 / 400 V630 AIP67
Product detail
JP · GFBMX · DFX · Metering box

Outdoor LV cabinets, PV grid boxes and cable branch boxes

Outdoor integrated distribution cabinet, PV grid-connection box, LV cable branch box and metering box, all CCC type-tested.
OutdoorPV grid tieCCC
Product detail

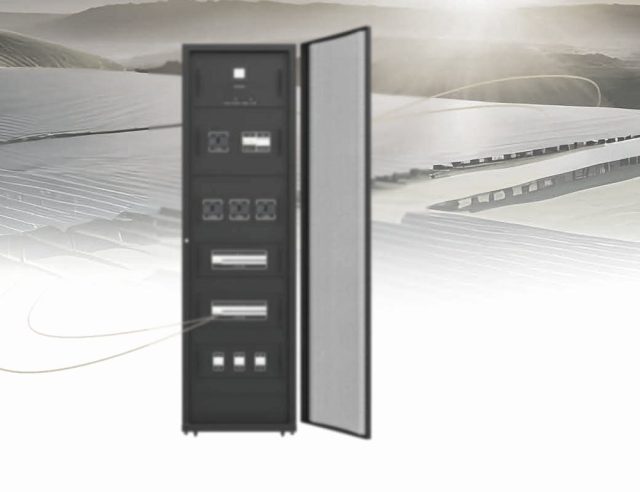

DPF01 Row power distribution cabinet (PDU)
CE + CCC

Row power distribution cabinet (PDU)

Precision power distribution and branch monitoring for IDC, telecom and finance data rooms, 20 to 200 kVA.
20–200 kVARS485 / SNMPIP20
Product detail

Quote this product

Send the single-line diagram, short-circuit level and panel schedule; a budgetary quotation follows within five working days.

Request a quotation
