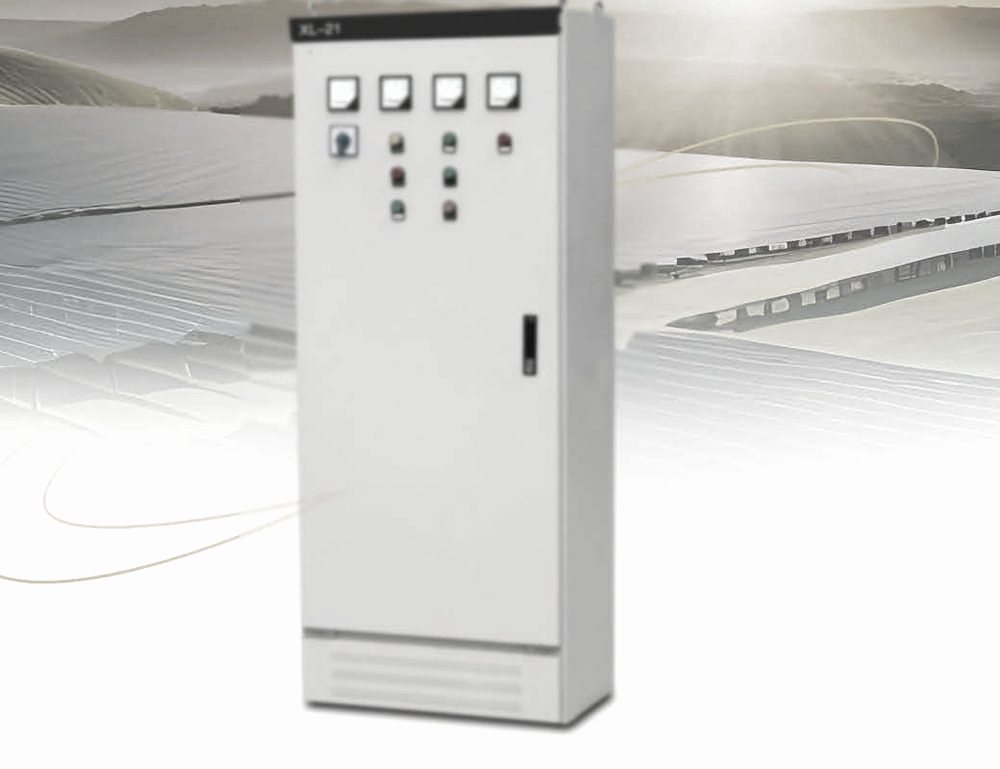

XL power distribution cabinet

≤ 500 V · NSX100–250 · RL1 fuses

XL is a closed, pressed-steel power cabinet for three-phase four-wire distribution at 500 V and below in power plants and industrial premises. A knife switch on the front right column serves as the incoming isolator; the door carries a voltmeter, and contactors and thermal relays sit behind it with buttons and indicators on the door.

Request a quotation Certificates
XL XL power distribution cabinet

Tested and certified

CE (TÜV Rheinland); CCC type test

Built for

Power plants, Industrial and mining, Workshops.

Standards

GB 7251, IEC 61439.

Technical data

ParameterValue
Knife-fuse switchISFT400/3P, 400 A; fuse links 150–400 A
Air circuit breakersNSX100N / 160N / 250N with TMD 3P3D trip units, 16–250 A
Current transformersBH-0.66, 75–600 / 5 A
FusesRL1-15 to RL1-400
InstallationIndoor, wall-standing
CertificatesCE (TÜV Rheinland); CCC type test

Standards

  • GB 7251
  • IEC 61439

Applications

  • Power plants
  • Industrial and mining
  • Workshops

Production process

From enquiry to commissioning

  1. Enquiry and analysisSend a single-line diagram, load list or panel schedule. An engineer confirms voltage, short-circuit level, forms of separation and applicable standards within 24 hours.
  2. Proposal and drawingsBudgetary quotation in five working days, then general-arrangement drawings, busbar sizing and a bill of materials for approval.
  3. Order and engineeringApproved drawings release procurement of Schneider, ABB or specified components and sheet-metal programming.
  4. Fabrication and assemblyLaser cutting, CNC bending, powder coating, busbar processing, primary assembly and secondary wiring in Shaoshan.
  5. Factory acceptance testDielectric, loop-resistance, insulation, earth-continuity, IP and current-injection tests; customers and consultants welcome to witness.
  6. Delivery and after-salesExport packing, sea or air freight, commissioning support and a 7×24 service line with Schneider-trained engineers.
