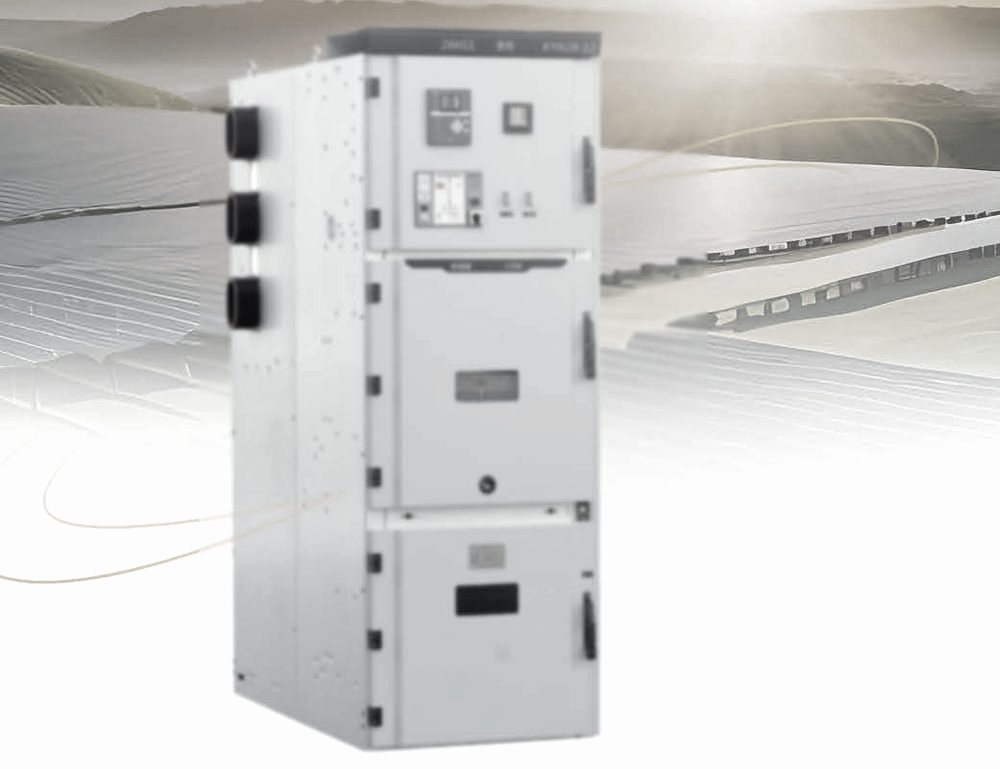

KYN28-12
Armoured withdrawable MV switchgear, 12 kV
3.6 / 7.2 / 12 kV · 630–4000 A · 16–50 kA
KYN28-12 armoured withdrawable AC metal-enclosed switchgear receives and distributes power on three-phase 50 Hz systems at 12 kV. XIHARI test reports are held at 1250 A / 25 kA, 2500 A / 31.5 kA and 4000 A / 40 kA.
Tested and certified
CN type test and XIHARI test reports
Built for
Substations, Data centre MV rooms, Industrial plants.
Standards
GB 3906, GB/T 11022, IEC 60298, DL/T 404.
Technical data
| Parameter | Value |
|---|---|
| Rated voltage | 3.6 / 7.2 / 12 kV |
| Rated current, breaker and switchgear | 630 / 1250 / 1600 / 2000 / 2500 / 3150 A (4000 A tested) |
| Short-time withstand, 4 s | 16 / 20 / 25 / 31.5 / 40 / 50 kA |
| Peak withstand and closing | 40 / 50 / 63 / 80 / 100 / 125 kA |
| Power-frequency withstand, 1 min | 24 / 32 / 42 kV |
| Lightning impulse | 40 / 60 / 75 kV |
| Enclosure / compartments | IP4X; IP2X with doors open |
| Climate variants | TH hot-humid, TA dry-tropical, G high-altitude, C cold; down to -45 °C by arrangement |
| Seismic | 8 degree |
| Certificates | CN type test and XIHARI test reports |
Standards
- GB 3906
- GB/T 11022
- IEC 60298
- DL/T 404
Applications
- Substations
- Data centre MV rooms
- Industrial plants
- Water treatment
Production process
From enquiry to commissioning
- Enquiry and analysisSend a single-line diagram, load list or panel schedule. An engineer confirms voltage, short-circuit level, forms of separation and applicable standards within 24 hours.
- Proposal and drawingsBudgetary quotation in five working days, then general-arrangement drawings, busbar sizing and a bill of materials for approval.
- Order and engineeringApproved drawings release procurement of Schneider, ABB or specified components and sheet-metal programming.
- Fabrication and assemblyLaser cutting, CNC bending, powder coating, busbar processing, primary assembly and secondary wiring in Shaoshan.
- Factory acceptance testDielectric, loop-resistance, insulation, earth-continuity, IP and current-injection tests; customers and consultants welcome to witness.
- Delivery and after-salesExport packing, sea or air freight, commissioning support and a 7×24 service line with Schneider-trained engineers.
