XM

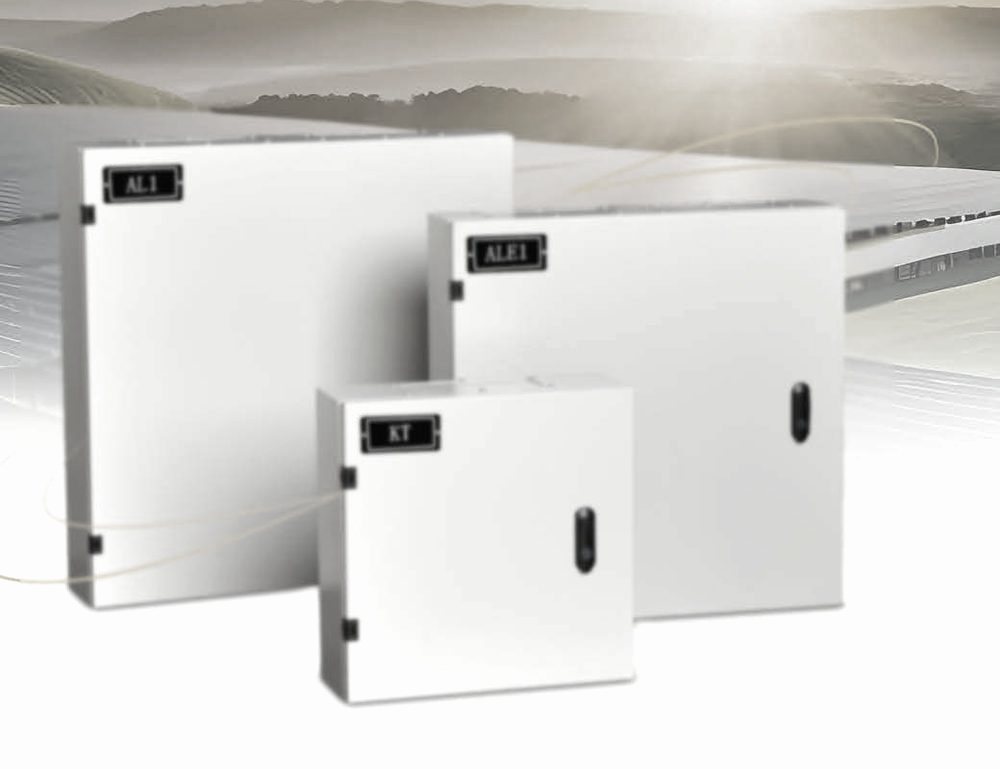

XM wall-mounted distribution box
230 / 400 V · 630 A · IP67
XM boxes receive and distribute energy in factories and civil buildings for distribution, lighting and metering. A common galvanised or painted mounting plate carries the meter and DIN-rail devices; a protective plate covers live parts so only switch handles are exposed, and door, box and plate are bonded with copper braid.
Tested and certified
CE (TÜV Rheinland); CCC type test (incl. BXD)
Built for
Building distribution, Prefab data-hall MEP boxes, Metering.
Standards
GB 7251, IEC 61439.
Technical data
| Parameter | Value |
|---|---|
| Rated voltage / current | 230 / 400 V; 630 A |
| Rated short-circuit capacity | 80 kA |
| Enclosure | IP67; cold-rolled steel; door opening > 90°; anti-theft lock; meter window |
| Installation | M surface, R flush, W outdoor; hinge code 1 concealed, 2 exposed |
| Installation category / pollution | Class II / level 3 |
| Service conditions | -5 to +40 °C; ≤ 2000 m (high-altitude version on request) |
| Certificates | CE (TÜV Rheinland); CCC type test (incl. BXD) |
Standards
- GB 7251
- IEC 61439
Applications
- Building distribution
- Prefab data-hall MEP boxes
- Metering
Production process
From enquiry to commissioning
- Enquiry and analysisSend a single-line diagram, load list or panel schedule. An engineer confirms voltage, short-circuit level, forms of separation and applicable standards within 24 hours.
- Proposal and drawingsBudgetary quotation in five working days, then general-arrangement drawings, busbar sizing and a bill of materials for approval.
- Order and engineeringApproved drawings release procurement of Schneider, ABB or specified components and sheet-metal programming.
- Fabrication and assemblyLaser cutting, CNC bending, powder coating, busbar processing, primary assembly and secondary wiring in Shaoshan.
- Factory acceptance testDielectric, loop-resistance, insulation, earth-continuity, IP and current-injection tests; customers and consultants welcome to witness.
- Delivery and after-salesExport packing, sea or air freight, commissioning support and a 7×24 service line with Schneider-trained engineers.
