GCS

Main LV switchboard, withdrawable

380 / 660 V · ≤ 4000 A · Icw 50 / 80 kA

GCS is the withdrawable low-voltage assembly for power plants, petrochemical, metallurgy, textile and high-rise buildings where automation and a computer interface are required. It handles distribution, centralised motor control and reactive compensation at 4000 A and below.

Request a quotation Certificates

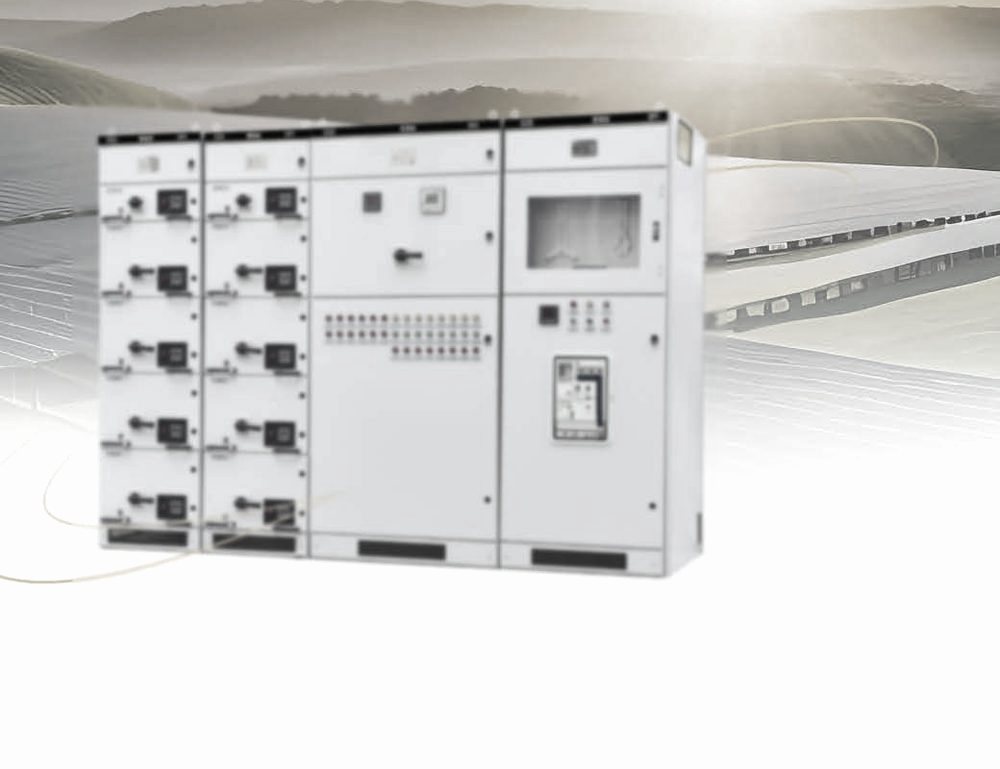

GCS Main LV switchboard, withdrawable

Tested and certified

CCC type test 400–6300 A; CN type test

Built for

Power plants, Petrochemical, Metallurgy.

Standards

IEC 439-1, GB 7251, ZBK 36001.

Technical data

ParameterValue
Main circuit rated voltageAC 380 (400) V, 660 V
Auxiliary circuitAC 220 / 380 (400) V; DC 110 / 220 V
Rated frequency50 (60) Hz
Rated insulation voltage660 (1000) V
Rated current, horizontal and vertical bus / MCC≤ 4000 A / 1000 A
Bus short-time withstand, 1 s50 / 80 kA
Bus peak withstand, 0.1 s105 / 176 kA
Power-frequency test, main / auxiliary2500 / 1760 V
Bus systemsThree-phase four-wire (A B C PEN) or five-wire (A B C PE N)
EnclosureIP30 / IP40
CertificatesCCC type test 400–6300 A; CN type test

Standards

  • IEC 439-1
  • GB 7251
  • ZBK 36001

Applications

  • Power plants
  • Petrochemical
  • Metallurgy
  • High-rise buildings

Production process

From enquiry to commissioning

  1. Enquiry and analysisSend a single-line diagram, load list or panel schedule. An engineer confirms voltage, short-circuit level, forms of separation and applicable standards within 24 hours.
  2. Proposal and drawingsBudgetary quotation in five working days, then general-arrangement drawings, busbar sizing and a bill of materials for approval.
  3. Order and engineeringApproved drawings release procurement of Schneider, ABB or specified components and sheet-metal programming.
  4. Fabrication and assemblyLaser cutting, CNC bending, powder coating, busbar processing, primary assembly and secondary wiring in Shaoshan.
  5. Factory acceptance testDielectric, loop-resistance, insulation, earth-continuity, IP and current-injection tests; customers and consultants welcome to witness.
  6. Delivery and after-salesExport packing, sea or air freight, commissioning support and a 7×24 service line with Schneider-trained engineers.
