GCK

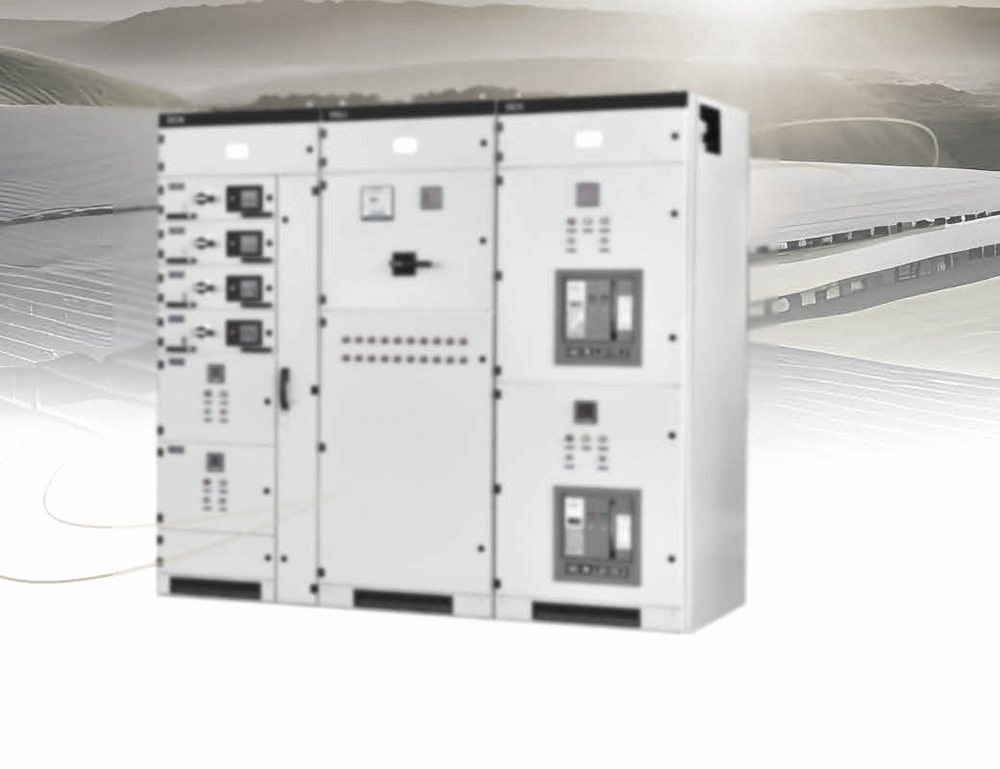

Motor control centre (MCC), withdrawable
380 / 660 V · 630–3150 A · Icw 80 kA
GCK combines power distribution centre (PC) and motor control centre (MCC) sections for power plants, substations and industrial users at 50 Hz up to 660 V and 3150 A. Operation is local, remote or automatic.
Tested and certified
CCC type test 400–4000 A; CN type test
Built for
Power plants, Substations, Industrial motor control.
Standards
GB 7251.1, IEC 61439.
Technical data
| Parameter | Value |
|---|---|
| Rated operating voltage | 380 / 660 V |
| Rated insulation voltage | 660 V |
| Rated current, horizontal / vertical bus | 630–3150 A / 600 A |
| Short-time withstand | 80 kA rms 1 s (horizontal), 50 kA rms 1 s (vertical) |
| Peak withstand | 176 kA (horizontal), 110 kA (vertical), 0.1 s |
| Main / auxiliary connectors | 200, 400 A / 10 A |
| Power-frequency withstand, 1 min | 2500 V |
| Enclosure | IP40 |
| Service conditions | ≤ 2000 m; -5 to +40 °C; inclination ≤ 5° |
| Certificates | CCC type test 400–4000 A; CN type test |
Standards
- GB 7251.1
- IEC 61439
Applications
- Power plants
- Substations
- Industrial motor control
Production process
From enquiry to commissioning
- Enquiry and analysisSend a single-line diagram, load list or panel schedule. An engineer confirms voltage, short-circuit level, forms of separation and applicable standards within 24 hours.
- Proposal and drawingsBudgetary quotation in five working days, then general-arrangement drawings, busbar sizing and a bill of materials for approval.
- Order and engineeringApproved drawings release procurement of Schneider, ABB or specified components and sheet-metal programming.
- Fabrication and assemblyLaser cutting, CNC bending, powder coating, busbar processing, primary assembly and secondary wiring in Shaoshan.
- Factory acceptance testDielectric, loop-resistance, insulation, earth-continuity, IP and current-injection tests; customers and consultants welcome to witness.
- Delivery and after-salesExport packing, sea or air freight, commissioning support and a 7×24 service line with Schneider-trained engineers.
