SCB13 · SCB18 · S13-M · S22-M
Distribution transformers, dry-type and oil-immersed
10 kV · 400–2000 kVA · Efficiency reports
Zhenxiang supplies the transformers that complete a substation package. Dry-type SCB13 and SCB18 cast-resin units suit indoor and data-centre rooms; sealed oil-immersed S13-M and S22-M units suit outdoor and prefab substations. The SCB18 and S22 series carry energy-efficiency test reports.
Tested and certified
Type-tested to the standards listed below.
Built for
Prefab substations, Data centre transformer rooms, Industrial plants.
Standards
GB/T 10228, GB 20052, IEC 60076.
Technical data
| Parameter | Value |
|---|---|
| SCB13-500/10, SCB13-2000/10 | Cast-resin dry-type, 500 and 2000 kVA; type-test reports |
| SCB18-500/10, SCB18-2000/10 | Cast-resin dry-type, high-efficiency class; type-test and energy-efficiency reports |
| S13-M-400/10 | Sealed oil-immersed, 400 kVA; type-test report |
| S22-M-400/10, S22-M-1250/10 | Sealed oil-immersed, high-efficiency; type-test and energy-efficiency reports |
| Other ratings | On request within the same series |
| Supplied with | BYD Hungary plant (MV/LV switchgear and transformers, 2025–2026) |
Standards
- GB/T 10228
- GB 20052
- IEC 60076
Applications
- Prefab substations
- Data centre transformer rooms
- Industrial plants
Production process
From enquiry to commissioning
- Enquiry and analysisSend a single-line diagram, load list or panel schedule. An engineer confirms voltage, short-circuit level, forms of separation and applicable standards within 24 hours.
- Proposal and drawingsBudgetary quotation in five working days, then general-arrangement drawings, busbar sizing and a bill of materials for approval.
- Order and engineeringApproved drawings release procurement of Schneider, ABB or specified components and sheet-metal programming.
- Fabrication and assemblyLaser cutting, CNC bending, powder coating, busbar processing, primary assembly and secondary wiring in Shaoshan.
- Factory acceptance testDielectric, loop-resistance, insulation, earth-continuity, IP and current-injection tests; customers and consultants welcome to witness.
- Delivery and after-salesExport packing, sea or air freight, commissioning support and a 7×24 service line with Schneider-trained engineers.
Also in prefabricated substation

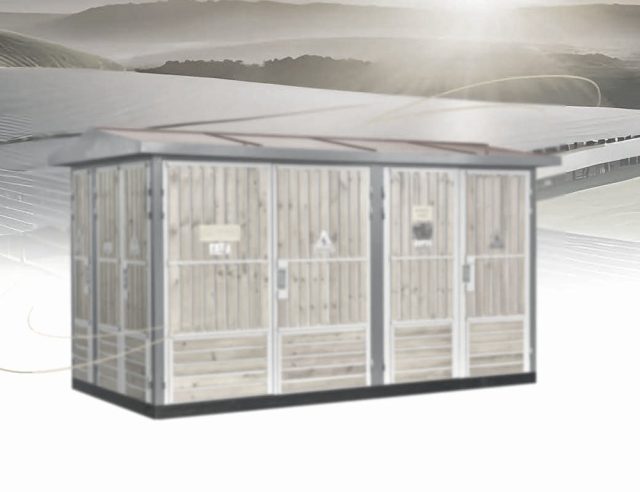

Prefabricated compact substation
